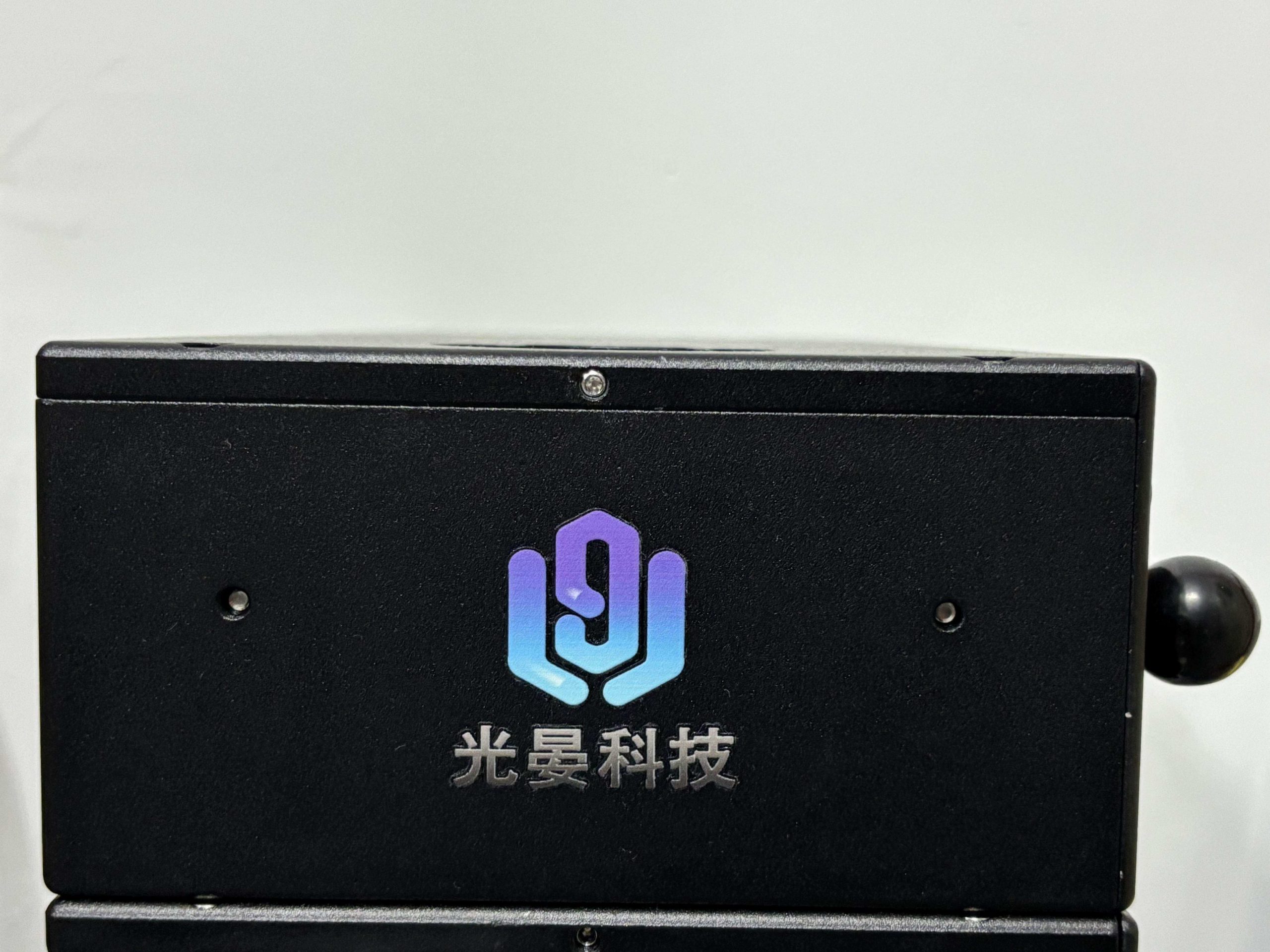

Kohler illumination optical module

Key Features

(1) Integrated design: Good optical path collimation and high stability;
(2) Pullable switchable optical path components: satisfy the needs of switching multiple optical components and efficient collection;
(4) Different optical modules can be stacked to use: Customers can independently assemble stacked optical path modules according to their scientific research needs to achieve various spectral and imaging measurement requirements.
(5) Compatible with common commercial microscope frames: connected through a dovetail groove structure, with a 70mm female dovetail groove on the upper surface and a 60mm male dovetail groove on the lower surface of the module.

Parameters

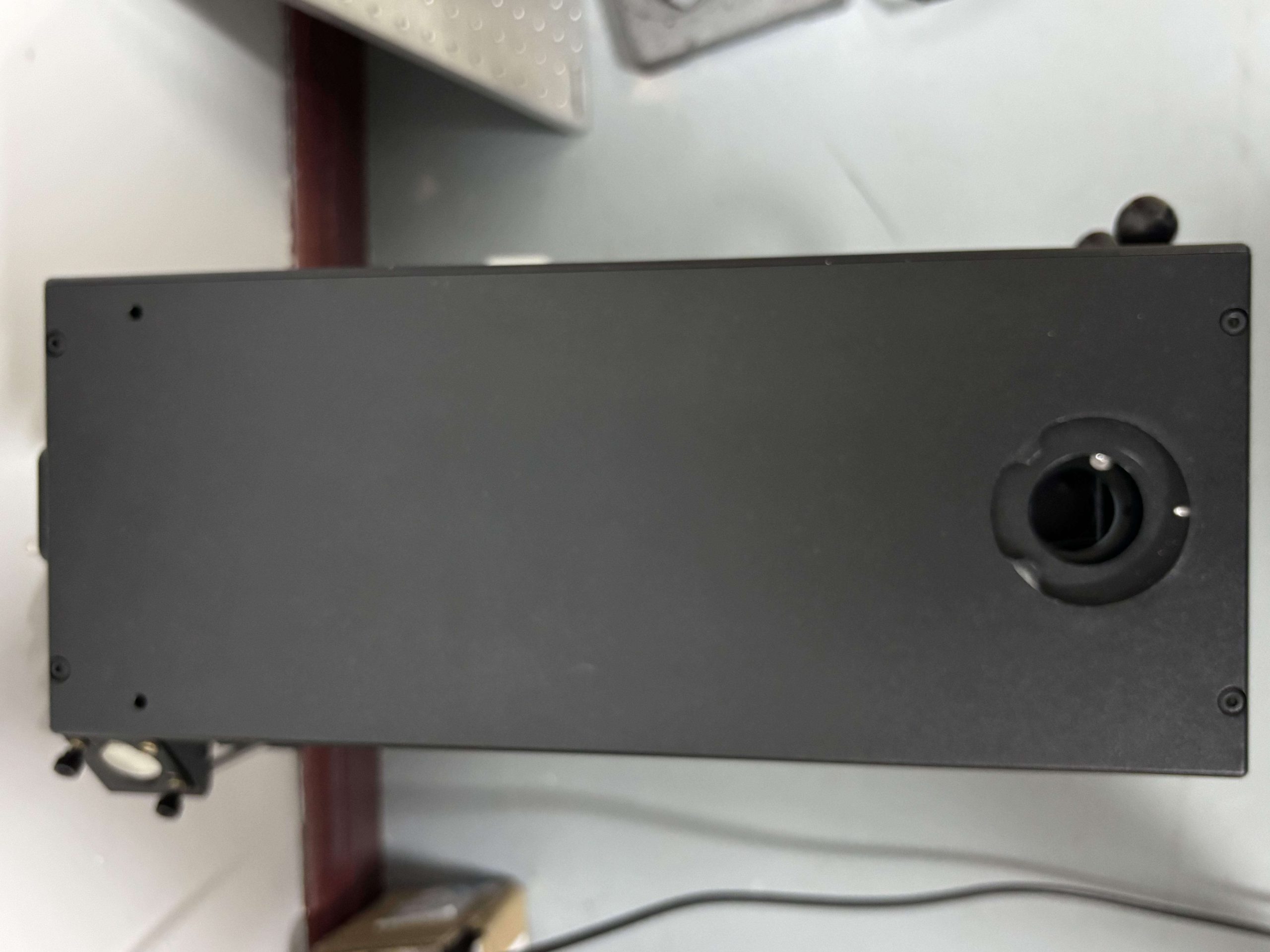

1)  Equipped with three light inlet and outlet ports, compatible with standard 30mm coaxial cage systems.
2）Built in standard Kohler lighting system, with a female dovetail groove structure compatible with commonly used specifications of halogen light boxes

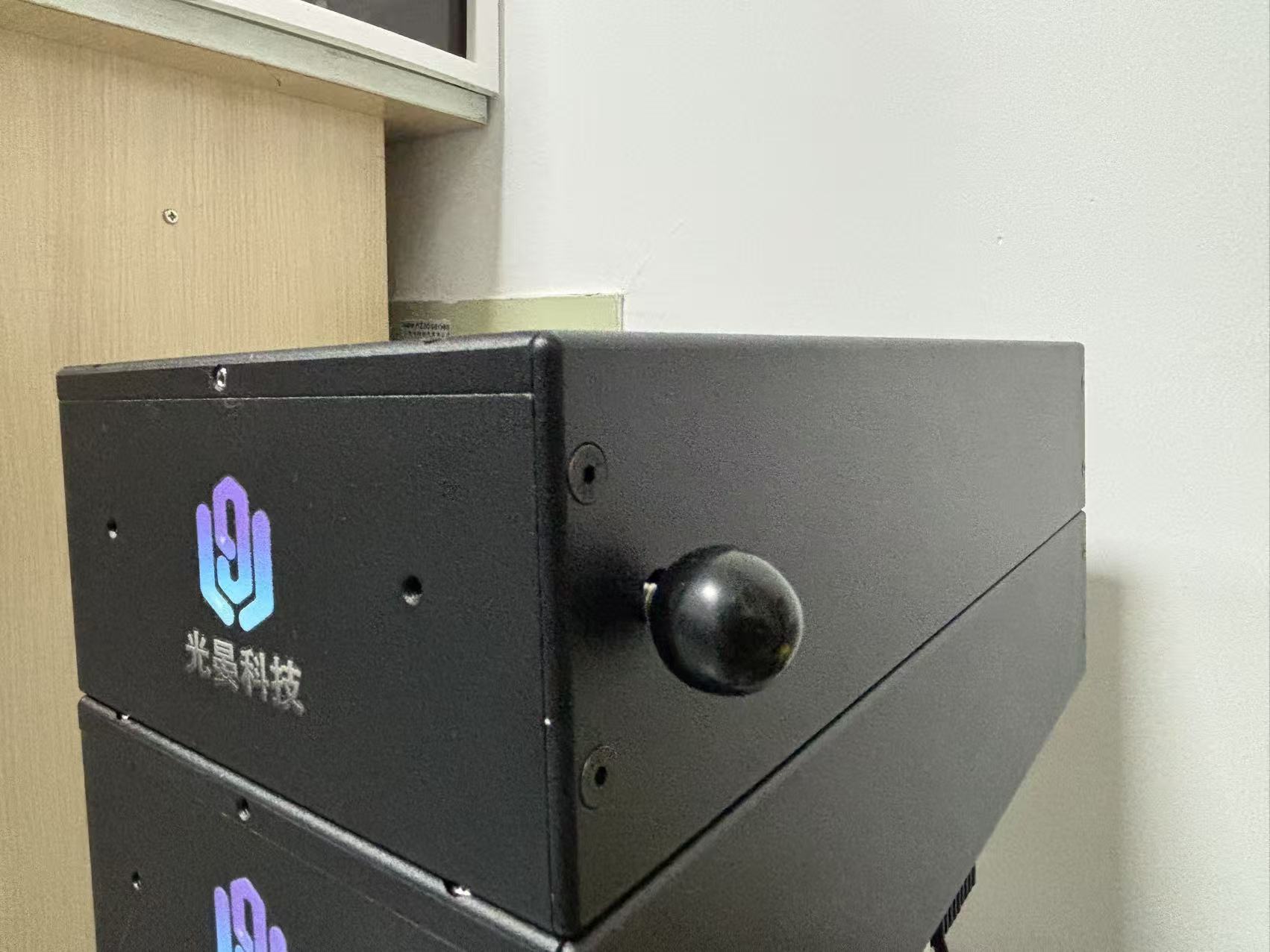

3）Built in pull-out switching module, can be pushed in for microscopic imaging under white light illumination, and can be pulled out for spectrum and imaging, achieving efficient light collection.
